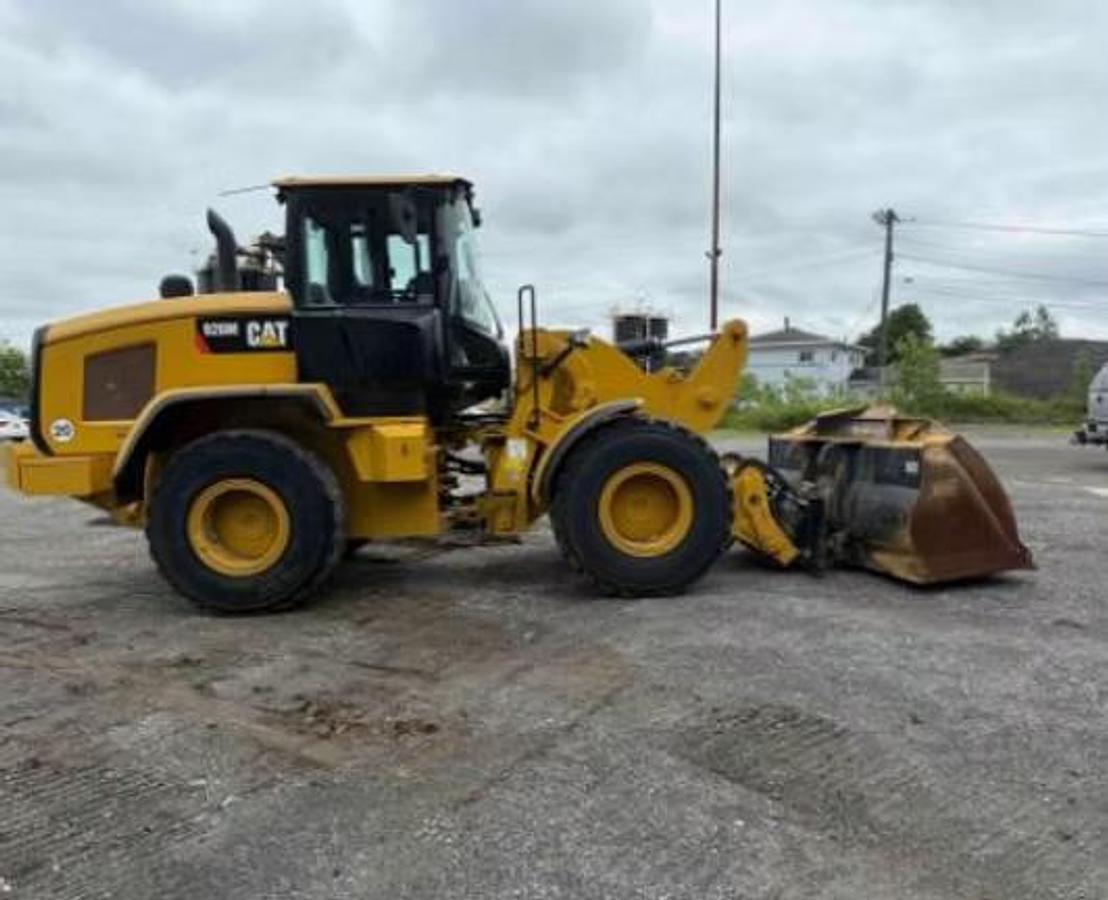

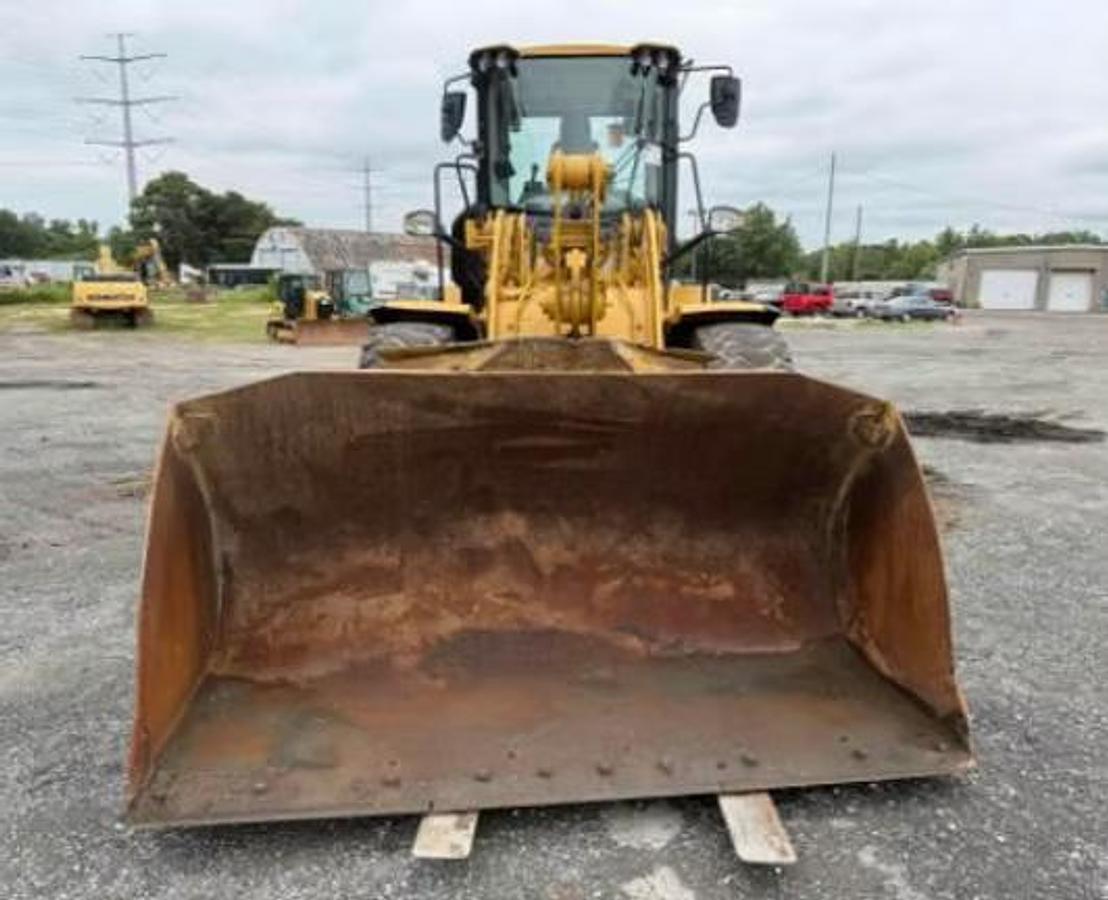

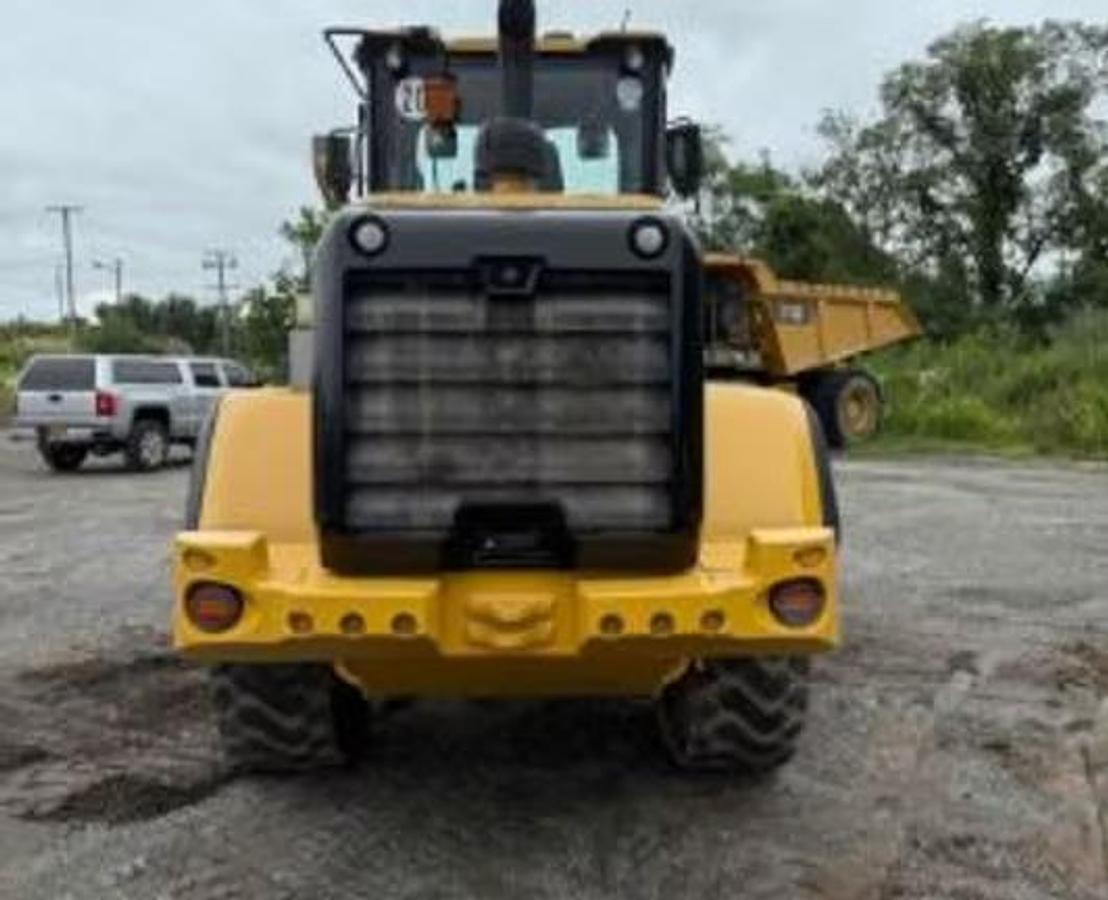

Cat 926M Small Wheel Loader

The Cat 926M Small Wheel Loader from Caterpillar is a reliable choice for various applications with its robust Cat C7.1 engine. Offering a maximum gross power of 168 HP and a displacement of 427 cubic inches, the machine ensures efficient performance. Its operating weight stands at 28,193 pounds, making it suitable for a range of tasks. The 926M comes equipped with a comprehensive hydraulic system featuring a 42.3-gallon capacity, which supports a swift total cycle time of 10.5 seconds in standard mode and 9.5 seconds in performance mode. The loader is designed for versatility, with bucket capacities ranging from 1.9 to 5.0 cubic meters, accommodating general use and light materials. The transmission provides smooth operation across four speed ranges, with a top speed of 25 miles per hour. The loader’s sound levels are comfortable for operators, with cab options that offer sound pressure levels between 66 and 68 dB(A). For added safety and durability, the 926M includes ROPS/FOPS-certified cabs. The machine's serviceable components, such as the fuel and hydraulic tanks, are easily accessible for maintenance. This used loader is in good condition, making it a cost-effective solution for your heavy-duty needs without compromising on performance or safety.

Details

• ConditionUsed - Good

TECHNICAL SPECIFICATIONS

Engine

Maximum Gross Power 168 HP

Maximum Net Torque - SAE J1349 (Performance Power Mode: Range 1-4) 588 ft·lbf

Maximum Gross Power - 1,600 rpm - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*) 162 mhp

Maximum Gross Power - 1,800 rpm - ISO 14396 (Performance Power Mode: Range 1-4) 168 HP

Rated Net Power - 1,600 rpm - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 156 HP

Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*) 573 ft·lbf

Rated Net Power - 1,800 rpm - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4) 163 HP

Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*) 586 ft·lbf

Rated Net Power - 1,800 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Performance Power Mode: Range 1-4) 166 mhp

Maximum Gross Power - 1,800 rpm - ISO 14396 (DIN) (Performance Power Mode: Range 1-4) 170 mhp

Maximum Gross Power - 1,600 rpm - ISO 14396 (Standard Power Mode: Range 1-3*) 160 HP

Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4) 601 ft·lbf

Displacement (Performance Power Mode: Speed Range 1-4) 427 in³

Displacement (Standard Power Mode: Speed Range 1-3*) 427 in³

Engine Model Cat C7.1**

Rated Net Power - 1,600 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 158 mhp

Rated Net Power - 1,800 rpm - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4) 164 HP

Maximum Net Torque - ISO 9249:2007 (Performance Power Mode: Range 1-4) 587 ft·lbf

Maximum Net Torque - ISO 9249:2007 (Standard Power Mode: Range 1-3*) 572 ft·lbf

Rated Net Power - 1,600 rpm - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 156 HP

Buckets

Bucket Capacities 1.9-5.0 m³ (2.5-6.5 yd³)

Bucket Capacities - General Purpose 1.9-2.5 m³ (2.5-3.2 yd³)

Bucket Capacities - Light Material 3.1-5.0 m³ (4.0-6.5 yd³)

Weights

Operating Weight 28193 lb

Cab

ROPS ISO 3471:2008

FOPS ISO 3449:2005 Level II

Note (2) The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, are:

– Standard cab: 68 ±3 dB(A)

– Deluxe cab: 66 ±2 dB(A)

Service Refill Capacities

Engine Crankcase 5.3 gal (US)

Fuel Tank 51.5 gal (US)

Front Axles 6.9 gal (US)

Rear Axles 6.6 gal (US)

Cooling System 7.9 gal (US)

Transmission - Gear Box 2.2 gal (US)

Note DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.

Hydraulic Tank 23.8 gal (US)

Hydraulic System - Including Tank 42.3 gal (US)

Diesel Exhaust Fluid (DEF) Tank 5 gal (US)

Loader Hydraulic System

Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Total Cycle Time 10.5 s

Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Total Cycle Time 9.5 s

Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Float Down, Maximum Lift to Ground Level 2.6 s

Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Float Down, Maximum Lift to Ground Level 2.6 s

Maximum Flow - Implement Pump 40 gal/min

Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Raise, Ground Level to Maximum Lift 6.2 s

Maximum Working Pressure - Implement Pump 3771 psi

Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Dump, at Maximum Lift Height 1.7 s

Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Dump, at Maximum Lift Height 1.5 s

Maximum Flow - Implement Pump - 4th Function Maximum Flow* 40 gal/min

Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure 4061 psi

Note (1) *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display, when equipped.

Relief Pressure - Tilt Cylinder 4061 psi

Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure 3771 psi

Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Raise, Ground Level to Maximum Lift 5.5 s

Maximum Flow - Implement Pump - 3rd Function Maximum Flow* 40 gal/min

Sound

Note (1) European Union Directive “2000/14/EC.”

Average Exterior Sound Pressure (ISO 6395:2008) 101 dB(A)

Operator Sound Pressure (ISO 6396:2008) 72 dB(A)

Transmission

Forward and Reverse - Range 4 25 mile/h

Forward and Reverse - Range 1* 1-13 km/h (0.6-8 mph)

Forward and Reverse - Range 2 8 mile/h

Forward and Reverse - Range 3 17 mile/h

Note *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display, when equipped. Factory default is 7 km/h (4.4 mph).

Axles

Front Fixed; Locking differential (standard)

Rear Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)
