Johnson Controls

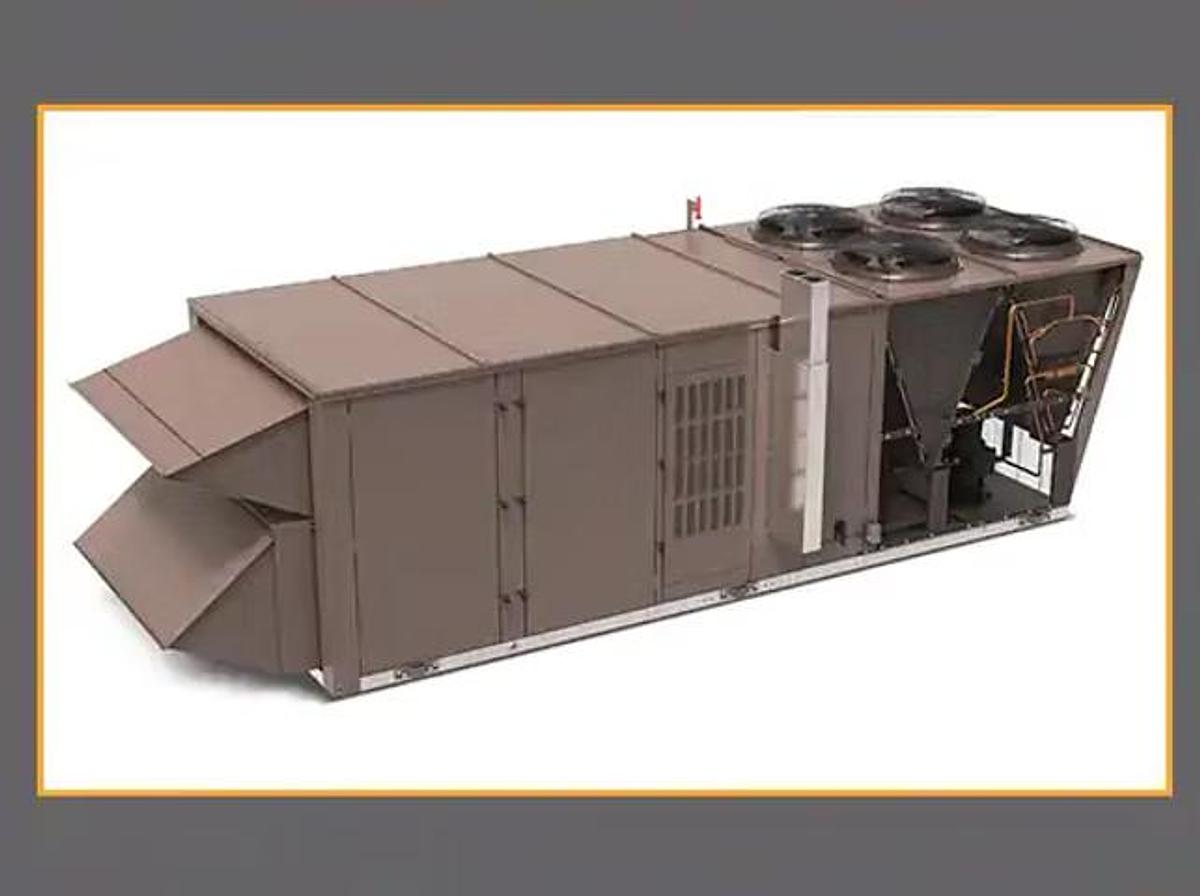

These are new, unused Johnson Controls construction units offered for a one-time sale, available in their original crates and covered by a full warranty. Each unit is a Single Packaged R-410A Air Conditioner with a capacity of 27.5 tons, designed for cooling only. Operating at 460 volts, these units feature a 10 HP Medium Static Belt Drive Blower with two stages of cooling and IntelliSpeed control for variable fan operation. The units come with several advanced features such as an economizer with power exhaust, meeting multiple energy efficiency standards, including ASHRAE and IECC. They are equipped with 4-inch pleated MERV 13 filters and a smart equipment controller supporting BACNet, Modbus, and N2 communications. Additional conveniences include a non-powered convenience outlet, circuit disconnect, and a dirty filter indicator switch. Constructed with durability in mind, these air conditioners have microchannel condenser coils, copper tube/aluminum fin evaporator coils, and galvanized steel drain pans. They also feature hinged access panels, louvered hail guards, and a condensate overflow system. These carefully engineered units are designed to deliver efficient cooling and reliable performance for industrial applications.

Details

• ConditionNew

Submittal Summary Page THIS IS A ONE TIME SALE ONLY

2 (TWO) NEW UNUSED CONSTRUCYION UNITS IN THE CRATE FULL WARRANTY.

Qty Tag # Model # / Material # Description

1 JV28C0CP4E1CCSA7G2 27.5 Ton, Johnson Controls Single Packaged R-410A Air

Conditioner, Standard Efficiency / Bottom Supply / Bottom Return,

Cooling Only, 460-3-60, 10 HP Medium Static Belt Drive Blower

• Two stages of cooling

• IntelliSpeed control of the VFD based on stages of cooling.Provides Single Zone VAV Fan Operation as defined by ASHRAE 90.1 section 6.4.3.10.

• Economizer w/ Power Exhaust and Economizer Fault Detection &

Diagnostic (Meets ASHRAE 90.1-2013, IECC 2015, California Title

24, AMCA 511)

• 4" Pleated Filters (MERV 13)

• Smart Equipment Controller including Discharge Air, Return Air,and Outdoor Air Temperature Sensors. BACNet MS/TP, Modbus and N2 Communication Card.

• Non Powered Convenience Outlet (110 VAC)

• Circuit Disconnect

• Dirty Filter Indicator Switch

• Phase Monitor

• Microchannel condenser coils

• Copper tube/Aluminum fin evaporator coils

• Hinged Access Panel

• Louvered Hail Guards

• Galvanized Steel Drain Pan

• Condensate Overflow(COF)

• Service Valves
